PlatformIO

PlatformIO is a development environment plugin for Visual Studio Code that supports multiple architectures and multiple frameworks for those working on embedded systems and micro controllers.

This page is available as a (slightly behind) PDF document for you to read if you prefer.

Setting Up

PlatformIO under linux needs pyhton3-venv to be installed. OSX doesn’t have this issue and just works. I have no experience of the Windows version since I don’t have Windows.

$ sudo apt-get install python3-venv

This is just a basic install of an extension in VSCode, if you know what you’re doing you can just go ahead and install the PlatformIO extension then skip to the next section.

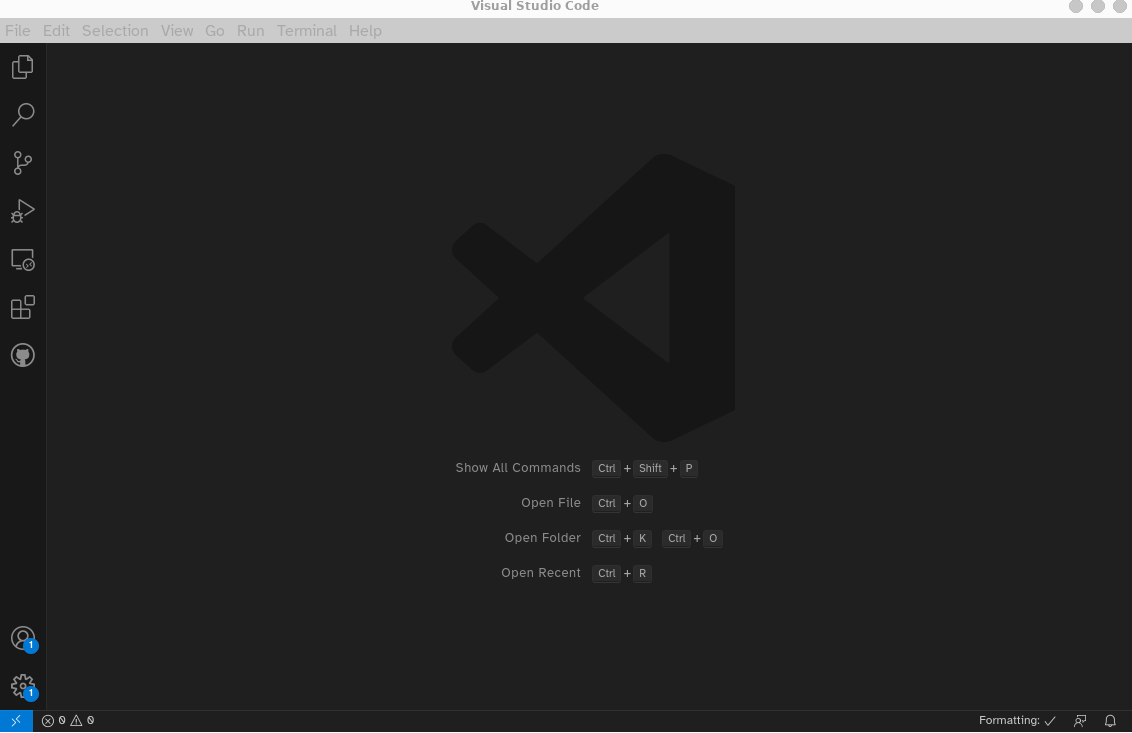

1 Install VSCode, then select the extensions icon from the left hand toolbar.

2 In the search box at the top of the screen type Platformio and hit enter. Select the Platformio extension to install it. VSCode might need to restart.

3 Once installed you should see a little alien head (it might be an ant, I’m unsure) in the left toolbar, this is PlatformIO. Click it to start PlatformIO.

4 There are also some icons along the bottom status bar. The little house icon is the PlatformIO home page – you can use it to jump there at any time. Until you’re used to using PlatformIO this is a good place to start for your projects. It should automatically display when you start VSCode unless you remove the tick from the ‘Show at startup’ checkbox (top right or the home screen page).

At the bottom of the screen you'll see the status bar.

The tick in the status bar is ‘compile’ and the arrow to the right is send to device which will also compile if required. The dustbin/trashcan is to clean builds.

First Project

Setting up a project is quick and simple, you’ll just need a project name, know the board you are using and the path where you want to store it.

From the PlatformIO home page (click the little house if the tab isn’t open) and on the right, you’ll see a “Quick Access” menu.

Select New Project and you’ll be presented with the Project Wizard, asking for a Project name and board type. Give your project a name, eg My Test Project then tab to the Board selection.

This is a dropdown with a list of over 1400 items. Luckily you don’t have to scroll down the entire list to find your board, you can start typing its name, eg esp32 dev which should narrow the list down. For ESP32 Development I tend to just opt for the Espressif ESP32 Dev Module – even though my boards are custom.

Below the board is a dropdown that allows you to select which framework you want to use. This list will show all of the available frameworks for the board you have selected. In the case of the ESP32 it’s going to be Arduino or ESPIDF but other boards will list other frameworks. Everything will be downloaded as and when needed so you don’t have to setup or preinstall the framework yourself.

Once you’ve completed filling out the wizard click the ‘finish’ button and wait for PlatformIO to complete setting up your project. If this is the first time you’ve created a project with the framework selected it will take longer to complete the initial setup of your project as the framework will be downloaded and installed. Subsequent setups with the framework will be much quicker.

Once complete you should see a folder/file list down the left hand side of the VSCode window. The ones we’re primarily interested in at this point are include, lib and src and the configuration file platformio.ini.

Normally libraries are downloaded, cached and added to your project when you configure your platformio.ini file using the lib_deps flag. The lib folder is where you put libraries that you have modified or have built yourself. You will still need to specify these in your platformio.ini file.

The src/include folders should be self explanatory. For includes in your code, you don’t need to worry about the path unless it’s a sub-folder. I find it odd that it’s not actually in the src folder but there you go. The src folder will have a stub/example file in it.

platformio.ini

This is where things get interesting. Your basic platformio.ini file will be something like

[env:esp32dev]
platform = espressif32
framework = arduino
board = esp32dev

The env sections are essentially a build-for-this definition. The platformio.ini file can contain multiple env sections and unless you specify one to build, they’ll all be built each time you compile. So for example if you are using the Arduino framework and working on a Teensy and an ESP32 version you can have an env section for each and have them built at the same time sharing the same source, but building with different parameters.

We use a [platformio] section to specify which env sections are built. Leaving the default_envs empty, or commenting it out with a semi-colon (;) will build them all.

[platformio]
description=My test program on my test board
default_envs= esp32dev

If you want to build parameter sections, sections that will be used by the env sections, you omit the env: For example:

[wifi]
ssid=”mySSID”
password=”myPassword”

defines the [wifi] section with 2 variables. To reference those variables we use

${sectionname.variable}

so using the [wifi] section ssid above, that’d be

${wifi.ssid}

We can use these parameters in any section to build our code for a device.

These are a number of keywords we can use to build the firmware for our device. The most important being build_flags, lib_ignore and lib_deps.

• build_flags : Used to pass flags to the compiler for example -D for adding defines

• lib_ignore : Used if you’re building for multiple devices that vary where you don’t want libraries that aren’t required – or that wouldn’t work – to compile.

• lib_deps : These are libraries that your code requires in order to compile and function.

Some examples of each are:

build_flags=    -DMY_LED=14
                ‘-DWIFI_NETWORK_SSID=${wifi.ssid}’
                ‘-DWIFI_NETWORK_PASSWORD=${wifi.password}’
                -DDEBUG

This will pass 4 defines which can be handled in your code. Note the quoted defines for passing string for the ssid and password.

lib_ignore and lib_deps both work in the same way, the only difference being one is a list of ignored libraries and the other is a list of required libraries.

lib_deps    =   adafruit/Adafruit Unified Sensor @ ^1.1.11
lib_ignore  =   SHT
                knolleary/PubSubClient@^2.8

Two things to note here

• The formatting of the library names
• Multiple library names in a list.

Lets deal with multiple libraries in a list. These are formatted, one per line no separator other than white space (i.e. no comma separation). Tabs and spaces are fine if you like tidy build files.

The formatting of library names depends on whether the library is being read from the libs folder or the downloaded cache/fetched library.

For libraries in the libs folder use the defined name field in the library.properties file for the library concerned – literally the bit after the = in the name= line.

Fetched libraries are cached, you can see in the lib_deps example that we’ve requested version 1.1.11 of Adafruit’s Unified sensor library. The ^ indicates you will accept backwards compatible versions with patches, using a ~ means you’ll accept any major.minor version provided the patch version is greater than or equal to the one you specified. Finally omitting both the ~ and ^ means you will only accept the version you specified.

So now you’re probably thinking “Well how am I supposed to know what a library is called?” and you’d be right. Platformio helps us here, and helps us quite a lot.

Warning Always save your platformio.ini changes before using the library add feature of PlatformIO.

Note This will add the library to ALL of your env sections.

Click the Home icon on the status bar to get to the PlatformIO home page, or switch to the tab if it’s already open. Down the left side there’s a series of icons Home, Projects, Inspect. Click the Libraries one.

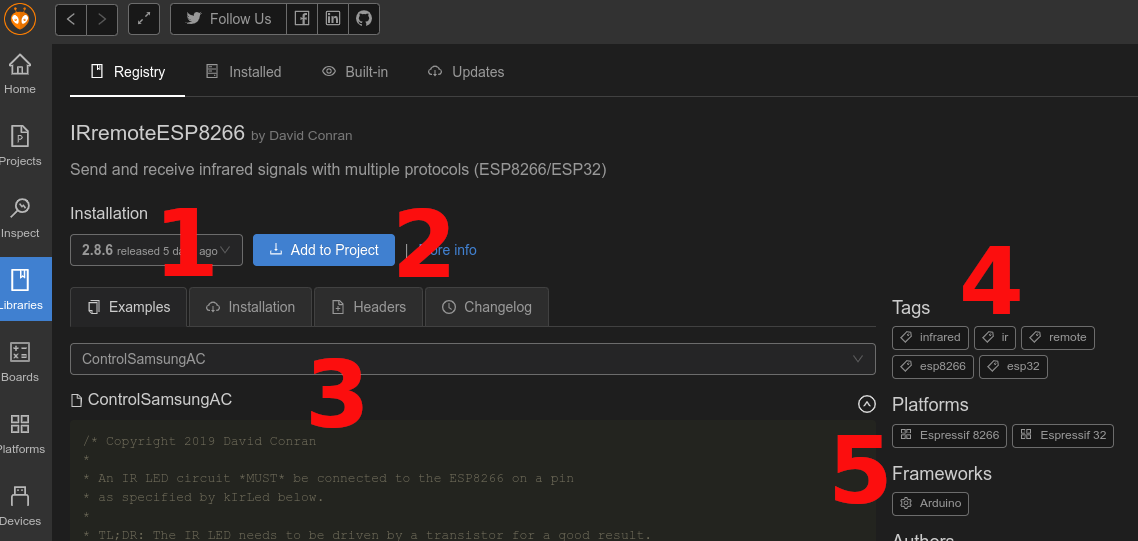

You should see a search box at the top, type in esp32 irremote and you should see a number of libraries appear, just click on the name of the first one that appears – it doesn't really matter what’s there, we’re just looking at the interface right now.

1 A dropdown with the available versions of the library. Select the version of the library you want to use.

2 A quick ‘Add to Project’ button that will insert the appropriate lines in your platformio.ini file.

Warning Always save your platformio.ini changes before using the library add feature of PlatformIO.

Note This will add the library to ALL of your env sections.

3 The four tabs show examples of usage, how to manually add the library, a list of all the header files and a changelog for the repo.

4 Some tags to help find alternative libraries that have the same or similar functionality.

5 A list of the supported platforms and frameworks for this library.

Loading firmware

By default PlatformIO will try and find your attached boards and program them. If, like me, you tend to use OTA Updates then adding the following to your env should trigger an OTA update when you try and push your code to the device.

upload_protocol = espota
upload_port = 10.120.3.12

I don’t really do it like that because that’d mean remembering all those device IP addresses and well, I don’t really have time for that. So again, I have a section setup similar to this:

[otadevices]
office = 10.120.3.12
workshop = 10.120.3.44
kitchen= 10.120.3.46
hall = 10.120.3.40

and then I just change the port to match the device I’m updating/modifying.

upload_protocol = espota
upload_port = ${otadevices.office}

If your device is attached and you want to output from its serial port you can pre-configure the PlatformIO serial port to be the speed you’ve set on your micro controller using:

monitor_port=115200

in the env section of the board it applies to.

So that’s a basic guide to getting you up and running. There’s far more to PlatformIO than covered here but hopefully this will get you started enough for it not to be a hindrance to building your projects. On the next few pages I’ve included one of the platform.ini files I started out using which shows many of the elements previously explained in a single file.

Multi-Platform Example

Here's a quick and simple example of building for multiple devices using a standard blink type sketch using the Arduino framework.

I've yet to find a better way of defining multiple boards in the same platformio.ini other than typing them out. You can add multiple projects to the same workspace if you need to use different frameworks but if the framework syntax is the same then you can share them in the same platformio.ini file.

Remember that the first time you do a build, if you haven't previously built for a device then the build environment for that will need to download. This means the initial build will take slightly longer and you'll need an Internet connection for it to be able to.

Create yourself a project for the Espressif ESP32 Dev Module using the Arduino framework. We'll use this to generate the project environment for us. You should have a standard build environment. Open your platformio.ini file for the project and replace the content with

[platformio]
description=LED Blink example, multiple platforms

[env:blinky-esp32dev]
platform = espressif32
board = esp32dev
framework = arduino

monitor_port=115200

build_flags = -DLED_PIN=2
                '-DHOST_TYPE="ESP32"'
                -DDEBUG

[env:blinky-teensy40]
platform = teensy
board = teensy40
framework = arduino
monitor_port=115200

build_flags =   -DLED_PIN=13
                -DUSB_SERIAL
                '-DHOST_TYPE="Teensy"'
                -DDEBUG

;
; Take care to specifiy the correct
; board_build.variant for your STM32
;
[env:stm32F10]

platform=ststm32
board=genericSTM32F103C8
board_build.variant=BLUEPILL_F103XX
framework=arduino

monitor_port=115200

upload_protocol=dfu

build_flags =   -DLED_PIN=5
                -DUSB_SERIAL
                '-DHOST_TYPE="STM32"'
                -DDEBUG
                -DPIO_FRAMEWORK_ARDUINO_ENABLE_CDC

WARNING It's really, REALLY important when using STM32 devices to get the correct board type and variant otherwise you'll need an ST-LINK to recover from the disabled USB.

The -DPIO_FRAMEWORK_ARDUINO_ENABLE_CDC build flag tells the STM32 to use the USB port as a serial device.

That's 3 different devices configured to build. Navigate to the src folder and open up the main.cpp file and replace the content with

#include <Arduino.h>

void setup()
{
  pinMode(LED_PIN, OUTPUT);

#ifdef DEBUG
  Serial.begin(115200);
#endif
}

void loop()
{
  digitalWrite(LED_PIN, HIGH);
  delay(1000);
  digitalWrite(LED_PIN, LOW);
  delay(1000);

#ifdef DEBUG
  Serial.print("Blinky for ");
#ifdef HOST_TYPE
  Serial.println(HOST_TYPE);
#else
  Serial.println("an undefined device");
#endif
#endif
}

As you can see it's just a blink sketch with some extra #ifdef..#endif statements. Those statements are using the build_flags defined in our platromio.ini file to change what happens to the code at compile time. In the setup() function of the code, around the Serial.begin() we check to see if DEBUG is defined and if it is we start the serial port up. You'll note that LED_PIN is different for each device in the platformio.ini and that this too is passed with build_flags.

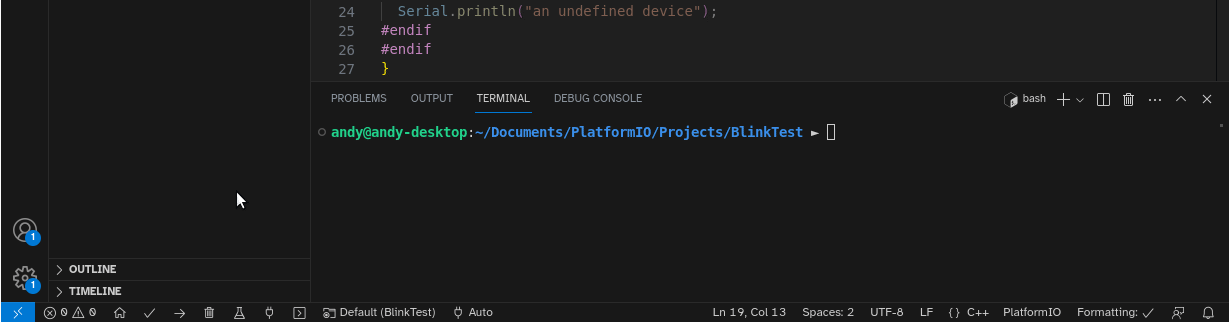

If you click the tick in the status bar, the build process will begin. if all goes well you'll see something like

If any errors occur they'll show in here too. Yellow text tends to be informaitonal, red for errors - though this will be dependant on your VSCode theme!

Platform Notes

Teensy

Useful build_flags for the Teensy boards. Note you can only have one of these flags defined at a time:

build_flag               Description (as in Arduino IDE)
------------------------------------------------------------
USB_SERIAL               Serial
USB_DUAL_SERIAL          Dual Serial
USB_TRIPLE_SERIAL        Triple Serial
USB_KEYBOARDONLY         Keyboard
USB_TOUCHSCREEN          Keyboard + Touch Screen
USB_HID_TOUCHSCREEN      Keyboard + Mouse + Touch Screen
USB_HID                  Keyboard + Mouse + Joystick
USB_SERIAL_HID           Serial + Keyboard + Mouse + Joystick
USB_MIDI                 MIDI
USB_MIDI4                MIDIx4
USB_MIDI16               MIDIx16
USB_MIDI_SERIAL          Serial + MIDI
USB_MIDI4_SERIAL         Serial + MIDIx4
USB_MIDI16_SERIAL        Serial + MIDIx16
USB_AUDIO                Audio
USB_MIDI_AUDIO_SERIAL    Serial + MIDI + Audio
USB_MIDI16_AUDIO_SERIAL  Serial + MIDIx16 + Audio
USB_MTPDISK              MTP Disk (Experimental)
USB_RAWHID               Raw HID
USB_FLIGHTSIM            Flight Sim Controls
USB_FLIGHTSIM_JOYSTICK   Flight Sim Controls + Joystick
USB_EVERYTHING           Everything (only teensy 3.1 3.5 3.6)
USB_DISABLED             No USB

ESP32, Custom Boards

Wait though. You've just completed your own custom board in KiCad and send it off to be built and you want to define all those pins you set out for specific features. You added a WS2812C and you want to refer to it as RGB_LED ...

I've spent a good amount of time trying to discover a simple way to migrate my custom boards from the Arduino IDE to PlatformIO and finally I have a solution, although it's not graceful but finding the appropriate documentation is almost impossible.

So, for a quick solution I've started with this.

In my top level projects folder ( eg ~/Documents/PlatformIO/Projects) I have created a directory "custom_boards". This is where I put all the variants of the boards I've made. All my boards are ESP32 based so I still use

platform = espressif32
board = esp32dev

in my env sections. However I now add

board_build.variants_dir = ../custom_boards
board_build.variant = app-esp32-miniboard

board_build.variants_dir points to all my board pin definitions and board_build.variant is the sub directory of custom_boards containing my pins_arduino.h

$ ls -la ../custom_boards/app-esp32-miniboard/
total 12
drwxrwxr-x 2 andy andy 4096 Aug 10 13:53 .
drwxrwxr-x 3 andy andy 4096 Aug 10 13:52 ..
-rw-r--r-- 1 andy andy 2178 Aug 10 14:01 pins_arduino.h

So now we have something like

[platformio]
description = Wifi enabled trigger.

[env:wifitrigger]
platform = espressif32
board = esp32dev
framework = arduino

board_build.variants_dir = custom_boards
board_build.variant = app-esp32-miniboard

as the base configuration.

Flash Sizes

Many of the boards defined in PlatformIO have default values set for the size of the flash that they use. If, for example, you have the N8 variant of the ESP32 ( 8 MB SPI flash ) then by default you wont have it all available to you. By default PlatformIO assumes you only have 4 MB SPI flash.

To modify this behaviour simply tell PlatformIO that you've got bigger flash and which partition format to use by adding

board_upload.flash_size = 8MB
board_build.flash_size = 8MB
board_build.partitions = default_8MB.csv

to your env section board parameters.

[env:wifitrigger]
platform = espressif32
board = esp32dev
framework = arduino

board_upload.flash_size = 8MB
board_build.flash_size = 8MB
board_build.partitions = default_8MB.csv

Example File

[platformio]
description = Low Power ESP32 Board for reading SHT31 or DHT11/22 temperature and humidity sensors

[otadevices]
office = 10.120.3.12
workshop = 10.120.3.44
kitchen= 10.120.3.46
hall = 10.120.3.40

[wifi]
ssid = "mySSID"
password = "myPassword"

[common]
build_flags =
    -DBUILTIN_LED=2
    -DNOTIFY_LED=16
    -DVOLTAGEMONITOR=33
    -DA1=4
    -DD1=13
    -DD2=14
    -DD3=15
    -DSTAY_AWAKE=15
    `-DWIFI_NETWORK_SSID=${wifi.ssid}`
    `-DWIFI_NETWORK_PASSWORD=${wifi.password}`

debug_flags =
    -DDEBUG
    -DSERIALLIVE
    -DUSETELNET

debug_libs = TLog

production_ignore_libs = TLog

dht_libs = knolleary/PubSubClient@^2.8
    adafruit/Adafruit Unified Sensor @ ^1.1.11

dht_ignore_libs = SHT31

sht_libs = knolleary/PubSubClient@^2.8

sht_ignore_libs = DHT sensor library

[env:lowpower-sht]
platform = espressif32
board = esp32dev
framework = arduino

upload_protocol = espota
upload_port = ${otadevices.office}

build_flags =
    ${common.build_flags}
    -DPIN_SCL=14
    -DPIN_SDA=13
    -DUSESHT
    `-DOTA_HOST_TYPE="OTA-LPSHTEMP"`

lib_ignore = ${common.sht_ignore_libs}
    ${common.production_ignore_libs}

lib_deps =
    ${common.sht_libs}

[env:lowpower-sht-DEBUG]

platform = espressif32
board = esp32dev
framework = arduino

monitor_speed = 115200

build_flags =
    ${common.build_flags}
    ${common.debug_flags}
    -DPIN_SCL=14
    -DPIN_SDA=13
    -DUSESHT
    `-DOTA_HOST_TYPE="OTA-LPSHTEMP"`
lib_ignore = ${common.sht_ignore_libs}

lib_deps =
    ${common.sht_libs}
    ${common.debug_libs}

[env:lowpower-dht]
platform = espressif32
board = esp32dev
framework = arduino

upload_protocol = espota
upload_port = ${otadevices.workshop}

build_flags =
    ${common.build_flags}
    -DDHT_PIN=14
    -DDHT_TYPE=DHT11
    -DUSEDHT
    `-DOTA_HOST_TYPE="OTA-LPTEMP"`

lib_ignore = ${common.dht_ignore_libs}
    ${common.production_ignore_libs}

lib_deps =
    ${common.dht_libs}

[env:lowpower-dht-DEBUG]
platform = espressif32
board = esp32dev
framework = arduino

monitor_speed = 115200

build_flags =
    ${common.build_flags}
    ${common.debug_flags}
    -DDHT_PIN=14
    -DDHT_TYPE=DHT11
    -DUSEDHT
    `-DOTA_HOST_TYPE="OTA-LPTEMP"`

lib_ignore = ${common.dht_ignore_libs}

lib_deps =
    ${common.dht_libs}
    ${common.debug_libs}

Note To ensure correct formatting I've had to subsitute ' (single quote) with ` (backtick) in the example configuration. They are used in areas I've needed to quote in the the -D define flags e.g. -DWIFI_NETWORK_SSID, -DWIFI_NETWORK_PASSWORD and -DOTA_HOST_TYPE. You'll need to fix those if you copy-paste the confiuration from this page.
